Hawkvine VC033 Educational Intelligent Auto Tracking Camera 12X 20X Digital Zoom HD CMOS sensor.
VC033 KEY FEATURES
1.Superb High-definition Image
VC033 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60 fps.
2.Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness.
3.Multiple Video Compression
Support H.264/H.264+ video compression. Support compression of resolution up to 1920×1080 with frame up to 60 fps and 2 channels 1920x1080p with 30 fps compression.
4.Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, VC033 camera works extremely quiet and moves smoothly without any noises.
5.Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode.
6.Low-power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
7.Audio Input Interface
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
| Parameters/Model | VC033-12X | VC033-20X |
| Tracking Camera and Lens Parameter |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels | 2.07 megapixel; 16:9 |
| Video Signals | 1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94,720P60/50/30/25 / 59.94 /2 9.97 |
| Optical Zoom | 12x optical zoom f＝3.9～46.1mm | 20x optical zoom f＝4.7～94mm |
| View Angle | 6.3°(tele)～72.5°(wide) | 2.9°(tele)～55.4°(wide) |
| Iris | F1.8 ～ F2.4 | F1.6 ～ F3.5 |
| Digital Zoom | X10 |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| Digital Noise Reduction | 2D﹠3D digital noise reduction |
| White Balance | Manual/Auto/One Push/ 3000K/ 4000K/5000K/6500K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/Dynamic Range adjustment |
| Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,Gamma curve |
| SNR | >55dB |
| Panoramic Camera |
| Sensor | 1/3 inch high quality HD CMOS sensor |
| Effective Pixels | 2.1 megapixel |
| Lens | Manual Focus |
| View Angle(D/H/V) | 122°/98°/73° |
| Input/Output Interface and Protocols |
| Video Interface | 3G-SDI |
| Network Interface | 100M network interface (10/100BASE-TX) 5G WiFi(optional), Support VISCA protocol control through IP port |
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181 |
| Compress Image Code Stream | Dual stream output |
| Video Compress Format | H.264,H.265 |
| Control Signal Interface | RS-232 |
| Control Protocol | VISCA/Pelco-D/Pelco-P Baud Rate:115200/9600/4800/2400bps |
| Audio Input Interface | Dual audio channel 3.5mm linear input |
| Audio Compress Format | AAC,MP3,PCM |
| Power Interface | HEC3800 power jacket(DC12V) |
| Pan Tilt Parameter |
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° |
| Pan Control Speed | 0.1 ～100°/s |
| Tilt Control Speed | 0.1～45°/s |
| Preset Speed | Pan: 100°/s,Tilt:45°/s |
| Preset Number | User can set up to 255 presets(remoter 10 presets) |
| Other Parameters |
| Supply Adapter | Input AC110V-AC220V to DC12V/2.5A |
| Input Voltage | Output DC12V±10% POE power supply optional |
| Input Current | 1.5A(Max.) |
| Consumption | 18W(Max.) |
| Store Temperature | -10℃～+60℃ |
| Store Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension(WxHxW) | 254mmX144mmX174mm |
| Weight(appr.) | 1.54kg |
| Application | Indoor |
| Remote Maintenance (LAN) | Remote Update,Remote Reboot,Remote Reset |
| Accessory | 12V/2.5A power supply adapter,RS232 control cable,Remote Controller,User Manual,Warranty Card,brackets(optional) |
|
|

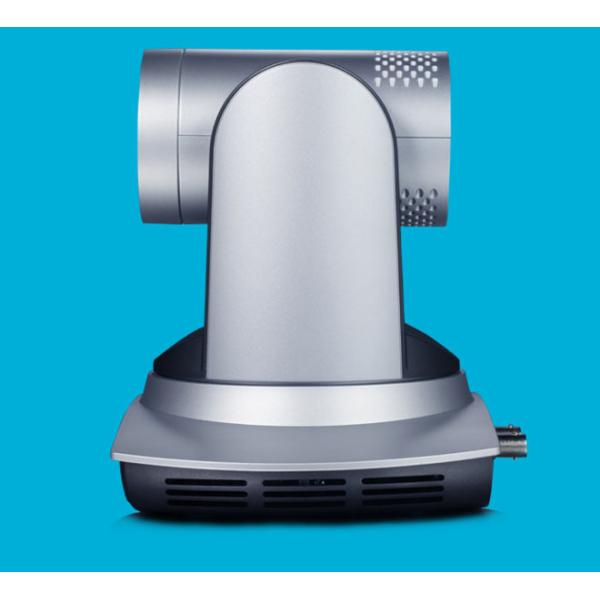

Hawkvine VC033 Educational Intelligent Auto Tracking Camera 12X 20X Digital Zoom HD CMOS sensor Images
|
